Commercial Multi-function Maize Corn Mill Hammer Spice High Efficient
    Publish time 2022-06-24 17:55

Support Sample Order & Click for Best Price

All products support SAMPLE ORDER and CUSTOMIZATION. If you only need 1 unit as sample, please CLICK HERE to get the best sample price!!!

Commercial Multi-function Maize Corn Mill Hammer Spice High Efficient Flour Grinder Crushing Machine Pulverizer Machine

Specification

Introduce of Electric Dry Spice Powder Mill Machine / Spice Milling machine / Spice Grinder

1.Use the high speed between movable and fixed fluted disc to make the materials crushed by the tooth disc impact,friction and collision.

2.After grinding,the material can directly get out from the grinding chamber to the discharging door, and then smashing into the collection bag.

3.Then the air comes out from the small hole of the bag without the fine powder,that’s not waste and not pollution.

Model

KN-9FZ-15

KN-9FZ-19

KN-9FZ-21

KN-9FZ-23

KN-9FZ-29

KN-9FZ-35

Rotor dia

150mm

190mm

210mm

230mm

290mm

350mm

Rolling speed

7200r/min

5600r/min

5500r/min

5000r/min

4500r/min

3500r/min

Electricity consumption

<26kw.h/t

<26kw.h/t

<26kw.h/t

<26kw.h/t

<17kw.h/t

<17kw.h/t

Motor

0.75kw

1.1kw

2.2kw

2.2kw

4-5.5kw

7.5-11kw

Capacity

50-100kg/h

150-280kg/h

150-300kg/h

200-350kg/h

350-500kg/h

600-800kg/h

Screen size

0.1-5mm

0.1-5mm

0.1-5mm

0.1-5mm

0.1-5mm

0.1-5mm

size –mm

540*420*410

680*680*530

700*490*850

800*490*850

700*900*530

870*670*1100

Weight

18kg

22kg

28kg

40kg

52kg

93kg

00:00

00:10

Detail Images

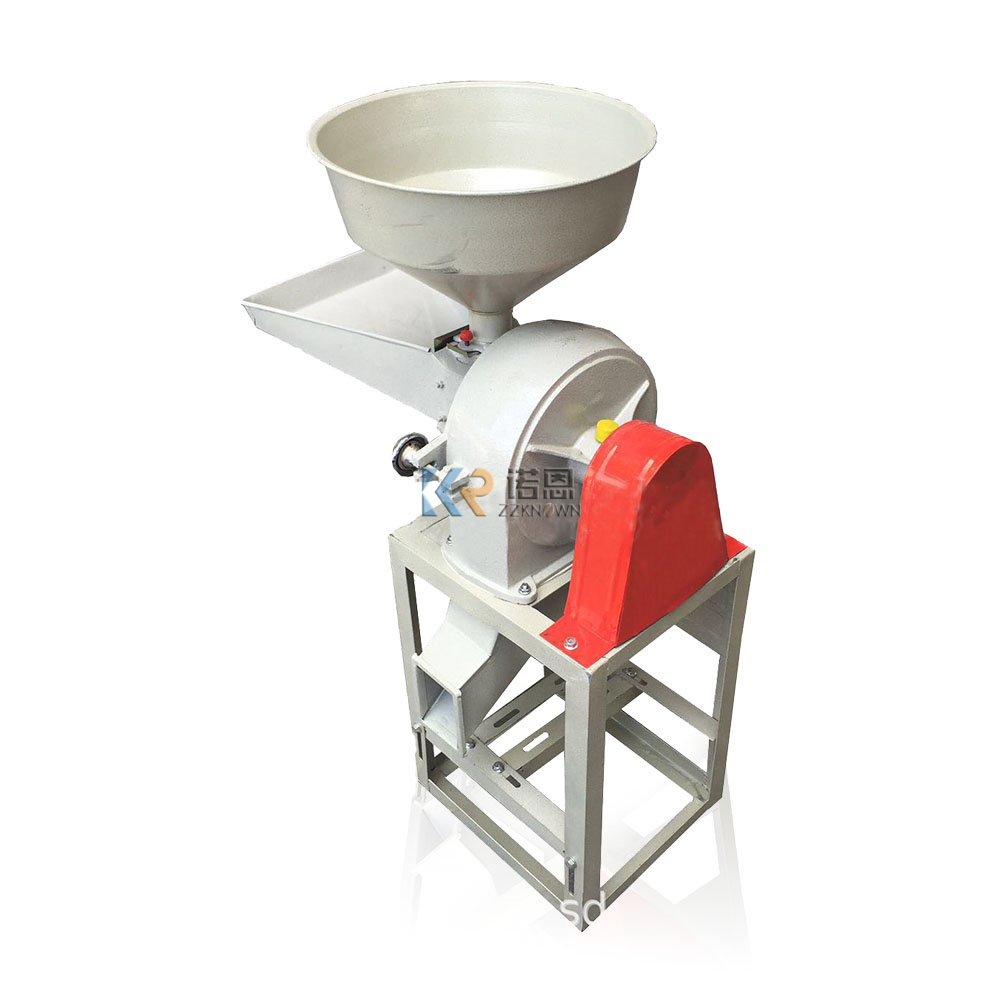

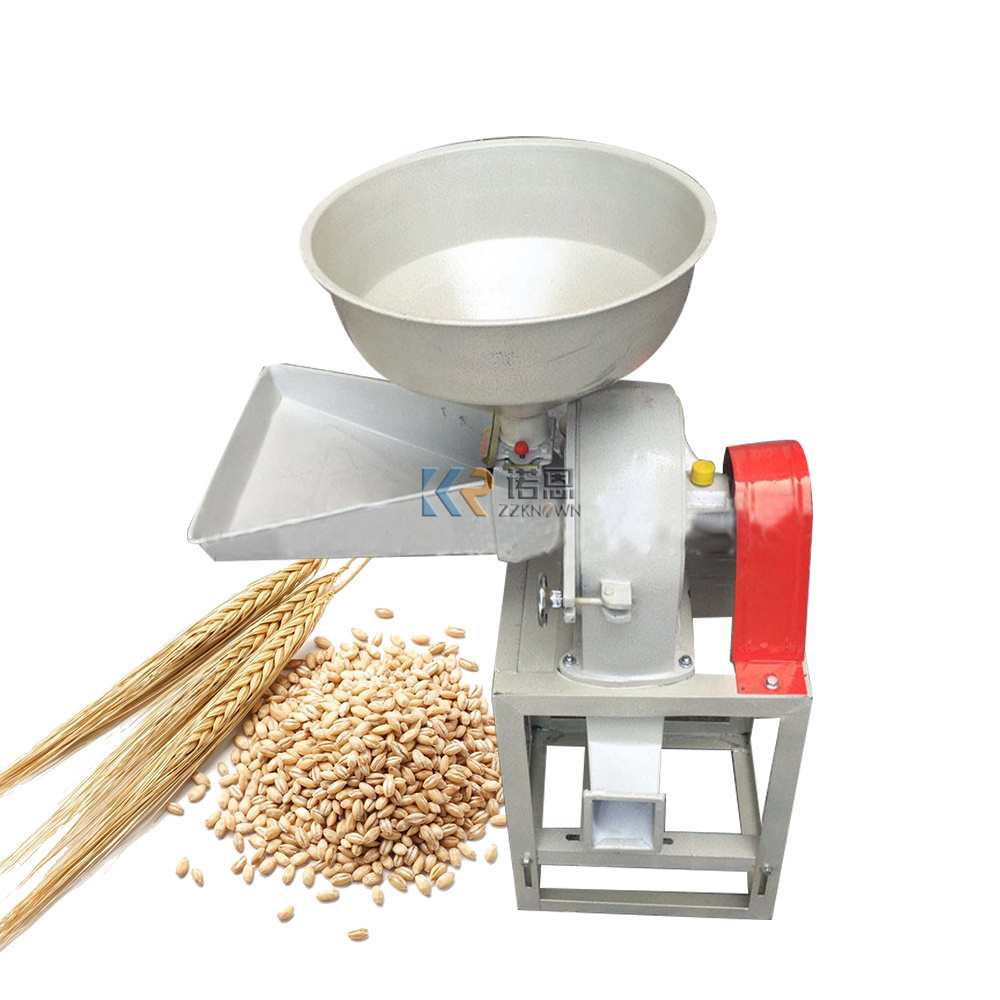

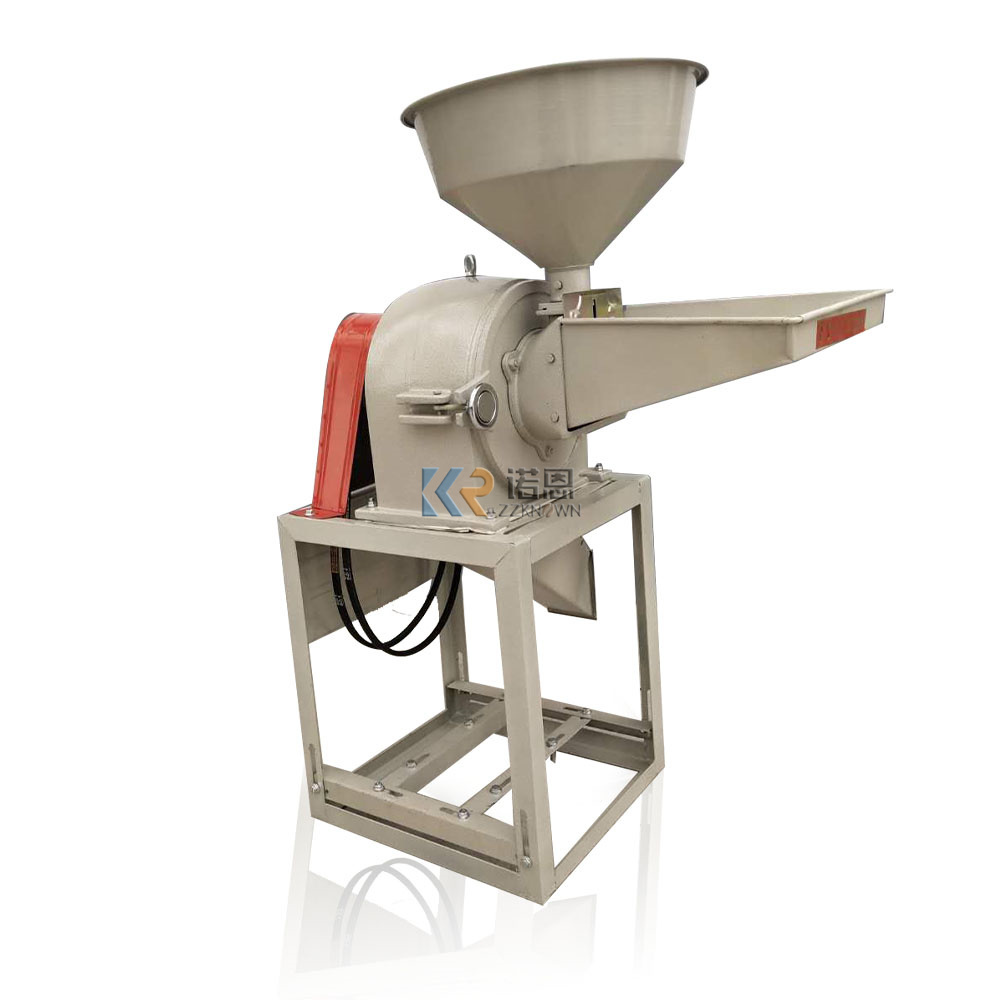

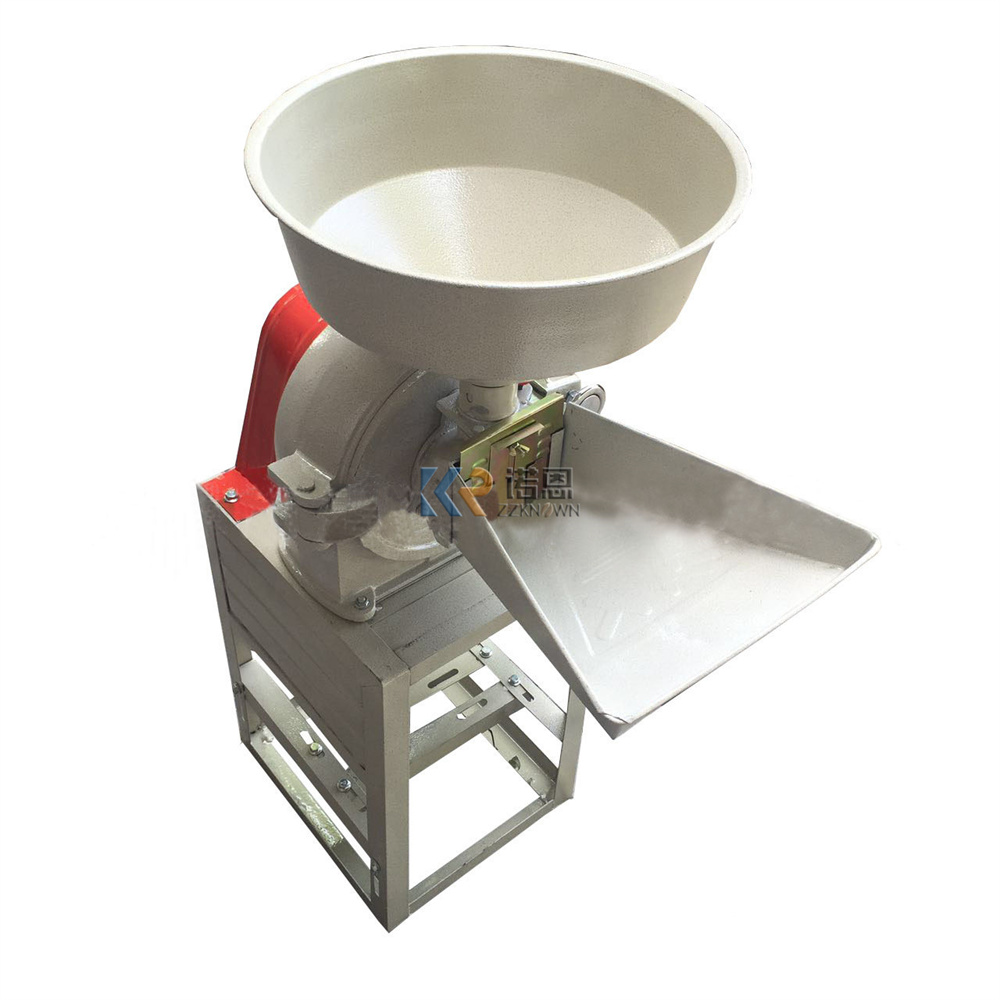

Maize Corn Mill Hammer Spice Flour Grinder Crushing Machine pictures

The spice grinding machine is suitable for dry grain/spice/herbs/chemical materials,such as rice,corn,wheat,grain seeds ,beans,chilli,pepper,salt,sugar,medicines,etc.

fines of power:adjustable through changing sieves.

The grinding powder is fine and uniform.

simple structure,easy operation,high efficiency.


Commercial Multi-function Maize Corn Mill Hammer Spice High Efficient
